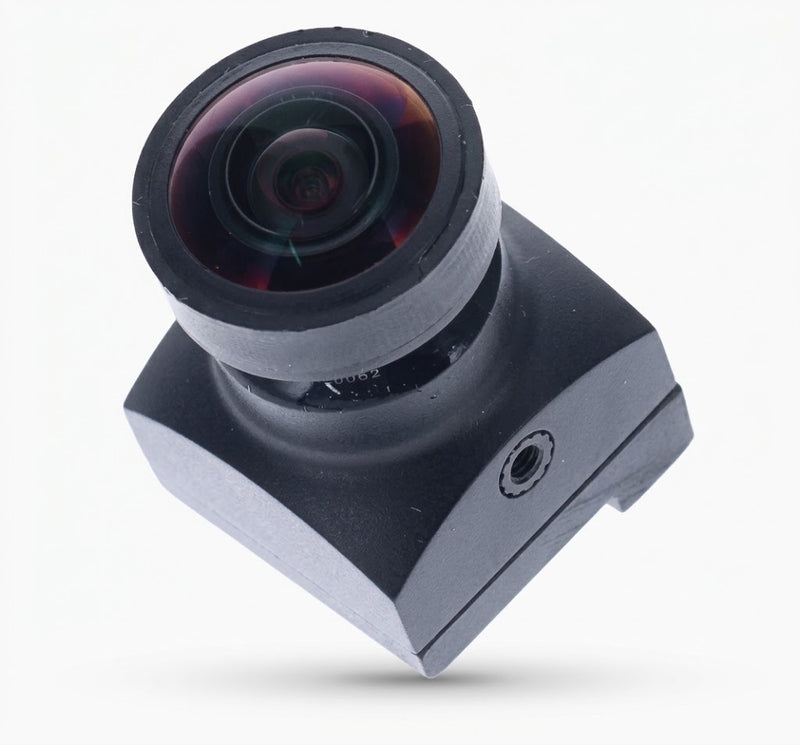

Drone Camera Module by HuShan
SKU
NEL001
- Regular price
- $30.00
- Regular price
- $30.00
Description:
A compact, lightweight analog camera providing wide-angle vision for demanding aerial applications and fast flight.
Technical Specifications
Sensor: onsemi: ASX340AT
Resolution: 640x480
Optical Format: 1/4"
Max Frame Rate: 50/60 fields/s
Technology: Active Pinned Photodiode, High Conversion Gain
Technical Specifications
Sensor: onsemi: ASX340AT
Resolution: 640x480
Optical Format: 1/4"
Max Frame Rate: 50/60 fields/s
Technology: Active Pinned Photodiode, High Conversion Gain
Weight:
11.8 g
Dimensions: 19 × 19 × 32.4 mm
Field of View (FOV): 132.6° diagonal
Aperture: F2.2
Latency: <200 ms
Operating Voltage: 9–18 V
Video Format: PAL / NTSC
Operating Temperature: −20°C to +70°C
Dimensions: 19 × 19 × 32.4 mm
Field of View (FOV): 132.6° diagonal
Aperture: F2.2
Latency: <200 ms
Operating Voltage: 9–18 V
Video Format: PAL / NTSC
Operating Temperature: −20°C to +70°C
Protection Rating:
IP69K water protection
Low-Light Performance:
Video output remains above 250 mV at 0.1 lux
Recommended Applications
FPV flight
Infrastructure inspection
Aerial mapping
Recommended Applications
FPV flight
Infrastructure inspection
Aerial mapping
Reference prices only. Please confirm actual prices with the supplier.
Contact supplier
