Drone Motor M3848 KV900 by Narsil Dynamics

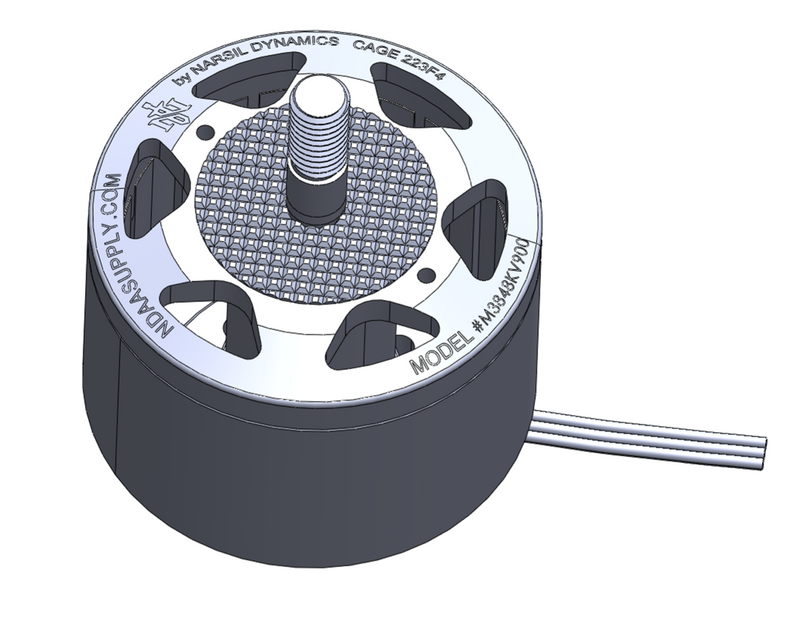

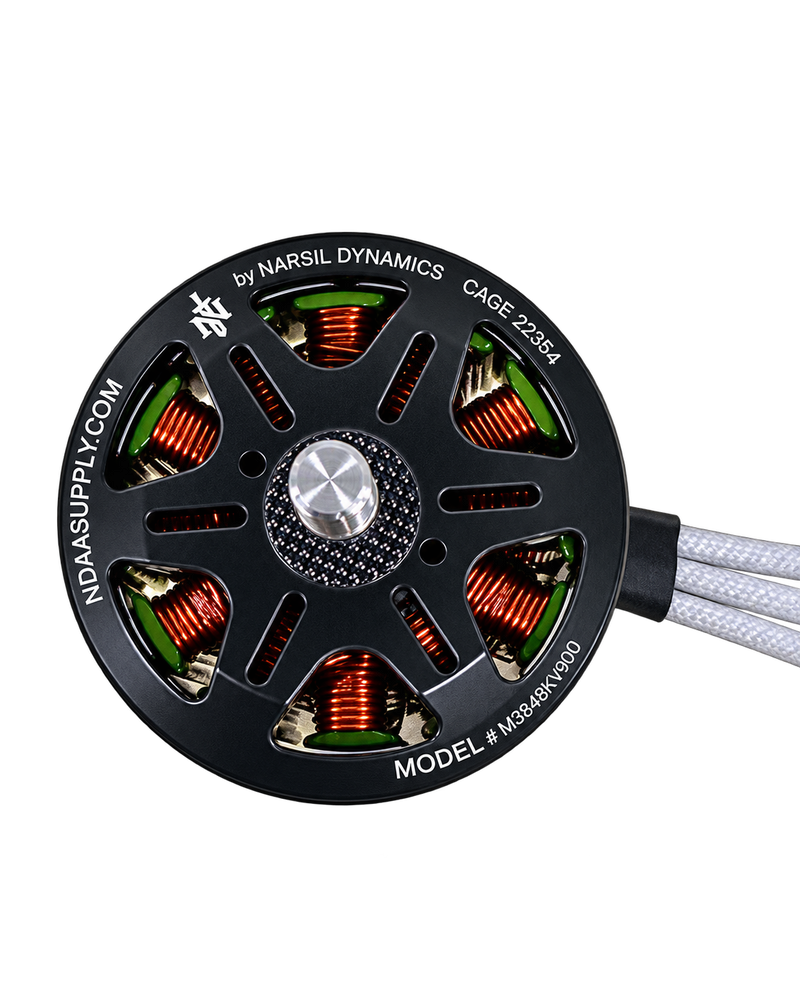

M3848 KV900 Brushless Drone Motor by Narsil Dynamics

The M3848 KV900 is a high-performance brushless motor designed for multirotor UAVs and demanding drone applications requiring strong power output, compact size, and reliable operation.

Built with a 12N14P motor configuration , the M3848 delivers a 900 KV rating with power capability up to approximately 1,650 W and peak current up to 65 A . Its compact Ø37.5 × 49.8 mm body and approximately 135 g motor weight make it well suited for performance-oriented UAV platforms where power-to-weight ratio is critical.

Key Features

• 900 KV high-performance brushless motor
• 12N14P configuration for smooth and efficient operation
• Peak current: up to 65 A
• Maximum rated power: up to approximately 1,650 W
• Motor size: Ø37.5 × 49.8 mm
• Motor weight: approximately 135 g
• Internal resistance: approximately 29.7 mΩ
• Designed for 25 V-class operation
• ESC: N/A
• Recommended propeller: 10 × 5.0", 3-blade

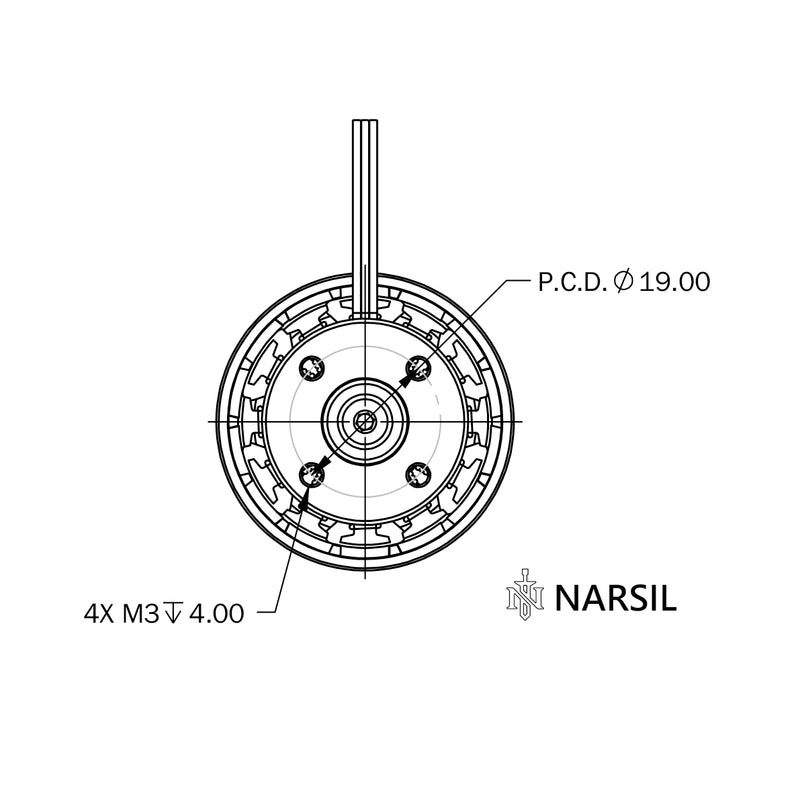

• M5 output shaft with compact mounting footprint

Designed for UAV Applications

The RUM-3848 KV900 is suitable for:

FPV drones, multirotor UAVs, industrial drones, autonomous platforms, surveillance UAVs, robotics, and other high-performance unmanned systems.

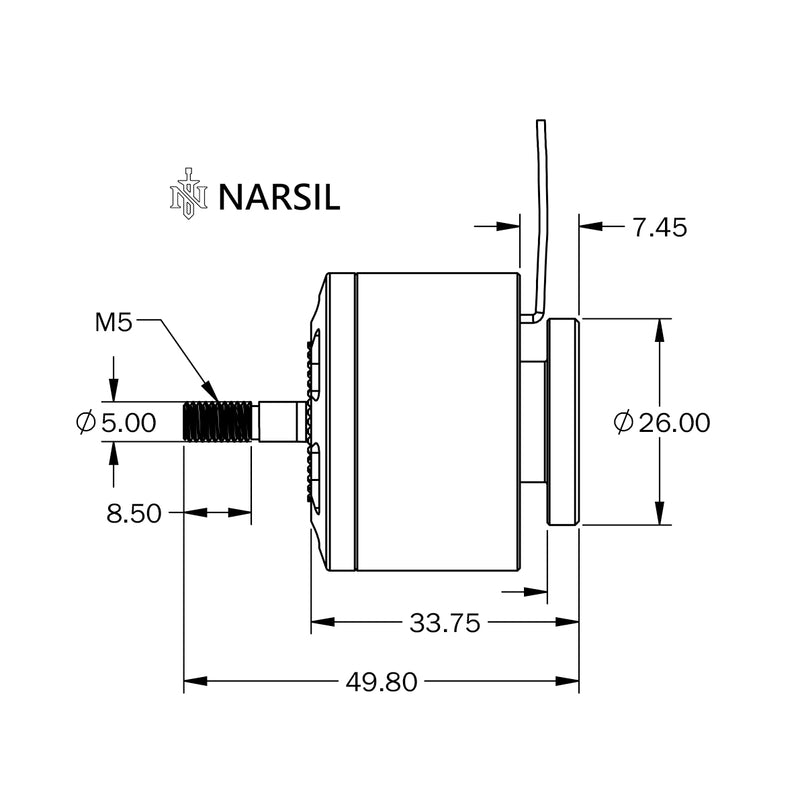

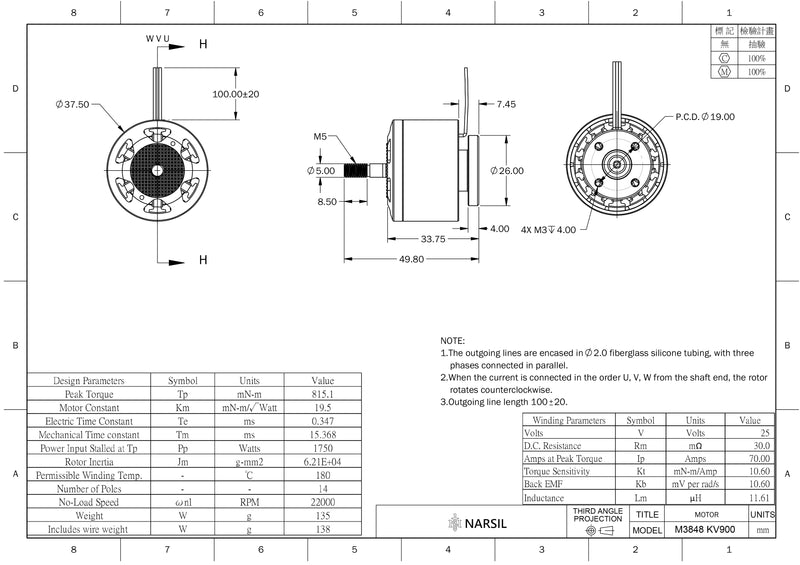

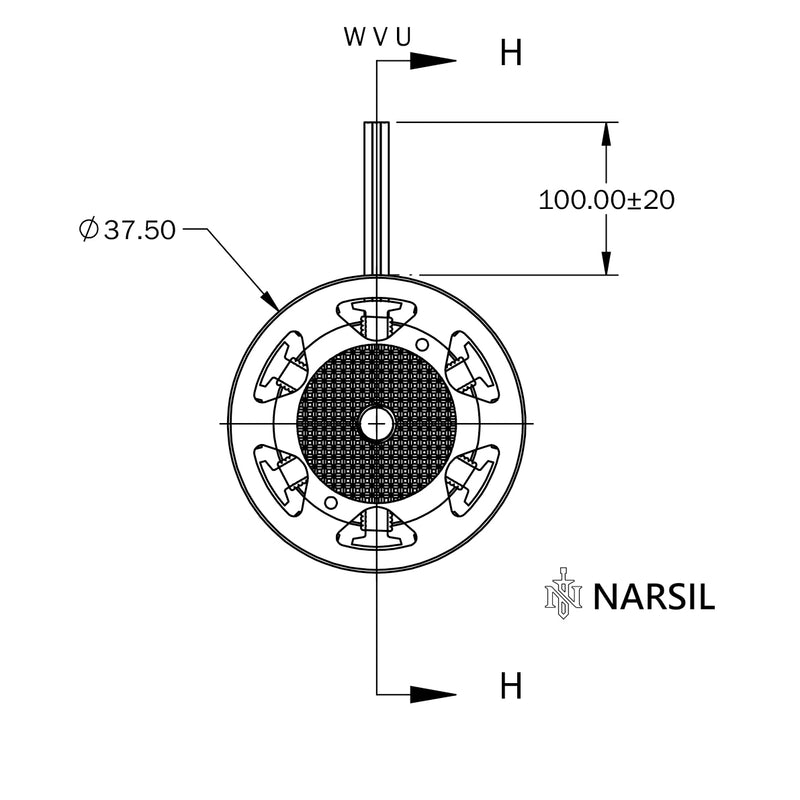

The motor uses three-phase output wiring protected by fiberglass silicone tubing , with an outgoing wire length of approximately 100 ± 20 mm . The engineering drawing specifies counterclockwise rotor rotation when phases are connected in the U-V-W sequence as viewed from the shaft end.

Technical Specifications
